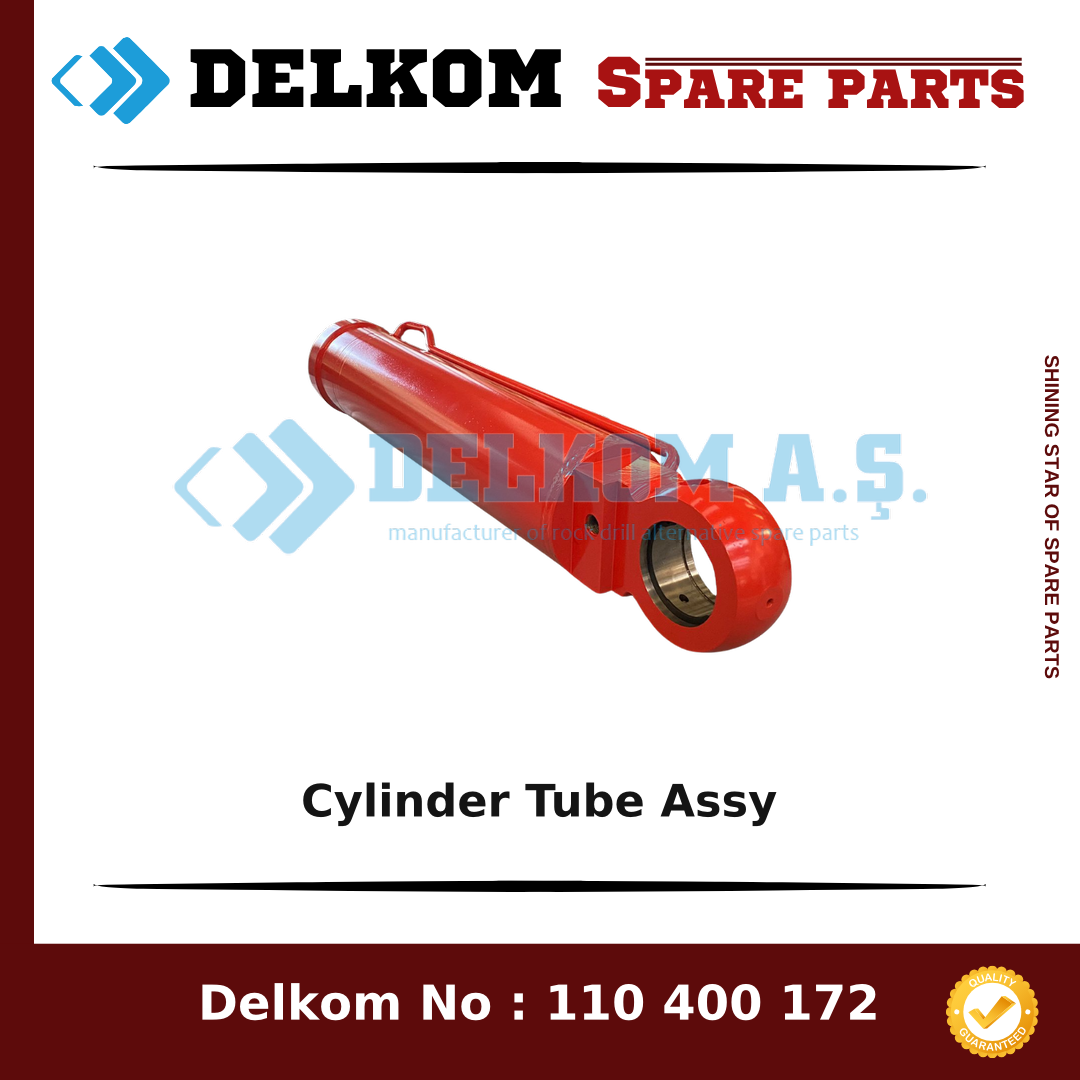

Cylinder Tube Assy

Suited to scheduled maintenance, repair and component renewal, the Cylinder Tube Assy (OEM 323 124 78) serves an important function in the feed and drill-carriage mechanism. The assembly provides linear hydraulic force for positioning, clamping or support functions where repeatable stroke and controlled movement matter.

Typical listed applications include DX680 and DX700, subject to machine specification and configuration verification. The alternative sourcing option is suited to maintenance programs focused on equipment availability, predictable servicing and competitive lifecycle cost. The working surfaces are designed around repeated pressure loading, with dimensional control supporting stable guidance and sealing performance.

Delkom supports drill-rig and drifter maintenance with alternative components for demanding mining and tunneling applications. To check fitment, lead time or bulk pricing, share Delkom reference 110 400 172 and OEM reference 323 124 78.
